Through Hole Slip Ring with 4 circuits Electric Power 25A and Optional

  • 1
  • 2
  • 3

Brand Name : CENO

Model Number : ECN030-04P4

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

circuit & current : 4 circuits * 25A

Voltage : 0 ~ 220 VAC/VDC

Contact resistance wave : ≤ 30mΩ

Dielectric strength : ≥1000VAC@50Hz

Isolation resistance : ≥500MΩ@100VDC

Rotating speed : 0-80rpm

Inner diameter : 30mm

Outer diameter : 99mm

Housing material : Aluminium Alloy

Contact material : Precious Metal

Lead wire size & length : As customized

IP grade : IP51

Working humidity : 60%RH

Working temperature : -20°C~+60°C

Contact Now

Through Hole Slip Ring with 4 circuits Electric Power 25A and Optional

ECN030-04P4 is CENO power slip ring with through hole 30mm and can be optional to suit different equipment. Power slip ring a precision electro- mechanical component that enables continuous, tangle-free, and low-loss transmission of electrical energy and electrical signals between rotating and stationary parts. That is to solve problems such as wire breakage & signal distortion caused by twisting & entanglement of wires in rotating mechanisms, ensuring long-term and stable operation of the system.

Specification

ECN030-04P4 Specification
Current & Circuits 4 circuits * 25A
Rating Voltage 0 ~ 220 VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Contact resistance wave ≤ 30mΩ
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP51
Operating speed 0~80rpm
Inner diameter Ø30mm
Outer diameter Ø99mm
Contact material Precious Metal
Housing material Aluminium Alloy
Lead wire size & length Customized

Features

  • Through hole 3mm-980mm optional
  • Circuits 1 - 300 circuits are option
  • Protection grade option IP51- IP68
  • Temperature -60℃ ~ 250℃
  • Install easy & Free maintenance

Applications

  • Automatic machine
  • Turntable testing machine
  • Packing equipment
  • Filling machinery
  • Medical equipment

Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature

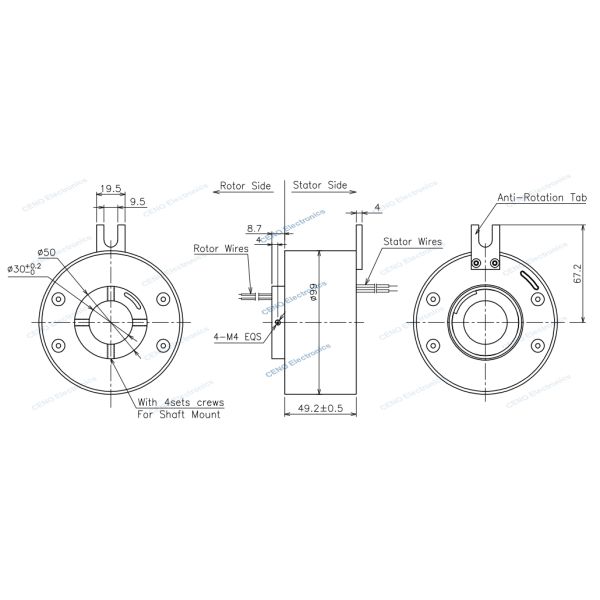

Outline Drawing

Through Hole Slip Ring with 4 circuits Electric Power 25A and Optional

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Through Hole Slip Ring with 4 circuits Electric Power 25A and Optional

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Through Hole Slip Ring with 4 circuits Electric Power 25A and Optional

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
